Hazard label class 3 with "FLAMMABLE LIQUID" print 100x100mm Paperlabel
Our class 3 hazard labels "Flammable Liquid" fully comply with current international transport regulations such as ADR, RID, IMDG, IATA (ICAO) and GGVSEB.
Features & Benefits
These labels are made from high-quality paper materials, are easy to handle, and adhere permanently to clean surfaces. They are suitable for indoor use as well as for short-term outdoor applications. They offer a cost-effective alternative to our weather-resistant PE film labels.
Packaging unit
Each roll contains 500 labels with a 50 mm core – perfect for professional use in industry, logistics and shipping.

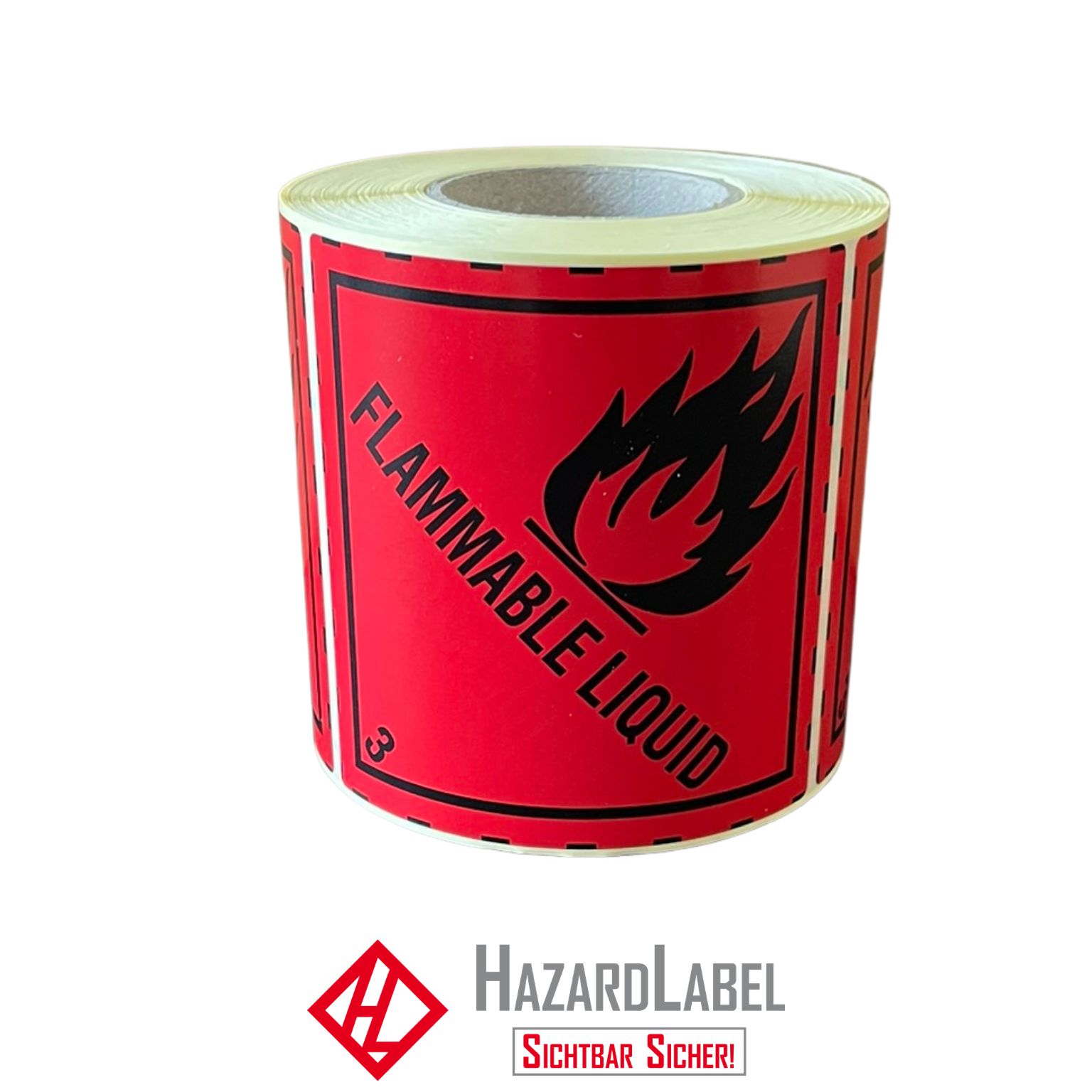

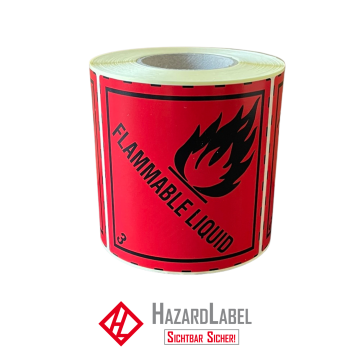

Layout
The label features a red background with a black flame symbol.
The number "3" appears in the lower corner, accompanied by the text "FLAMMABLE LIQUID".
For better distinction from the shipping item, we have integrated a dashed outer line.
Class description – Hazard class 3
Class 3 includes all flammable or combustible liquids with a flash point of no more than 61 °C. The flash point is the lowest temperature at which a liquid produces enough vapor to ignite upon contact with an ignition source.
Typical substances in this class:
Gasoline, diesel, ethanol, paints, adhesives, alcohols, thinners, perfumes, toluene, xylene, tar, polishes and pesticides.
Summary
|
Version
|
Roll with 500 labels
|
|
Core
|
d = 50mm
|
|
Material
|
Paper
|
|
Adhesive
|
Permanent
|
|
Label height
|
100 mm
|
|
Label width
|
100 mm
|
|
Winding
|
outside
|
|
Corners
|
rounded, r = 2 mm
|
|
Valid according to
|
ADR, IATA, IMDG, RID
|
|
Symbol and color
|
Flame: black
|
|
Background
|
red (Pantone color 186U)
|
|
Number in the lower corner
|
3
|
|
Cargo IMP Code
|
RFL
|
|
Name
|
Flammable liquid substance
|
|
Additional
|
Dashed outer line
|
Storage instructions
For long-lasting labels, please observe the following storage recommendations:
-
Temperature: 18 – 24 °C
-
Humidity: 40 – 55 %
-
Light protection: Protect from direct sunlight
-
Packaging: Store in original box or sealed foil
-
Opened rolls: Keep in a closed plastic bag to avoid moisture
Custom orders – no problem
If you need a different quantity per roll, e.g. 100, 1,000 or 3,000 labels.
Would you like labels made from another material or with a different core?
No problem – we manufacture your labels tailored to your specifications.
Simply contact us by email at bestellung@hazardlabel.de.
